Actions
24Flow has introduced the Action tab in the Team Cockpit Settings to allow you to add additional buttons in the Team Cockpit, scroll down to see an example.
The configuration has been made flexible such that you can configure size, color & alignment of buttons as well as toggle between icons & text. Moreover you can configure for which Operation Routing statuses you want to see the actions via filters.
-
Action Button Layout: This setting controls the button layout in Team Cockpit.
-
Stacked: single column.
-
Inline: single row with scroll (no support for alignment adjustments).
-
Wrapped: row that wraps to next line when space runs out.
-
-
Action Alignment: This setting controls how the actions are aligned on the Team Cockpit screen.
-
Center
-
Left
-
Right
-
Stretch
-
-
Action Button Size: This setting controls the size of the action buttons (Medium, Large, Extra Large).
-
Action View Mode: Controls the the preferred view mode: whether buttons should show icons, labels, or both.
-
Show Label Toggle: Shows a toggle button to expand or collapse action labels in Icons Only view mode.
-
Show Action Expander: Check this to hide or show extra action buttons using the expander toggle. If disabled, all actions are always visible.

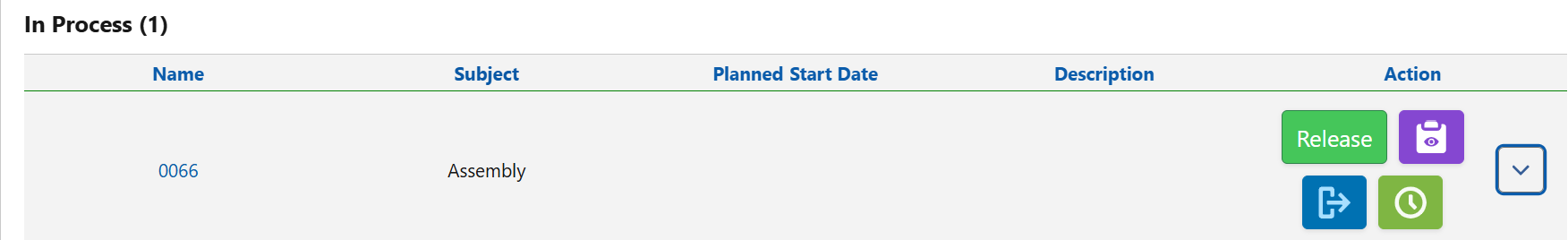

As an example, here we have 3 additional actions defined. The action expander button is visible and we have the toggle between icons and labels. Each action has a Flow associated with it and you can set the order and colors of the actions as well.

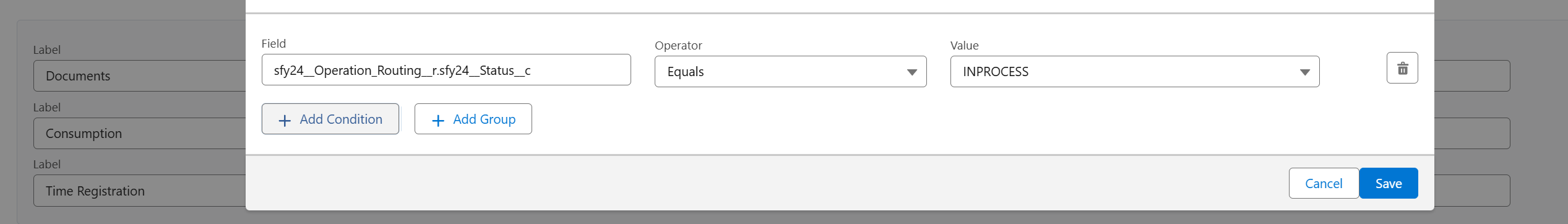

In case you do not want to show all buttons for all Operation Routing statuses, you can add filters in the action definition. See the example below to show the button only when the Operation Routing status is INPROCESS.
